Swept away with plenty of power!
ADLER Push Broom SB-series
The robust ADLER SB-series push broom reliably sweeps loose debris to one side on building sites, depot grounds, roads and on farms. The eleven sweeping strips arranged in a row dislodge dirt and soil from the ground. Furthermore, the broom is suitable for sweeping sand into paving joints and for clearing snow.
Maintaining the sweeping broom is also incredibly simple: if the sweeping strips are worn, the brush elements can be replaced quickly and easily after removing the standard impact protection.
The SB series is available in six working widths ranging from 120 to 270 cm. Mountings for fork tines are integrated into the brush frame as standard. Additional attachments for excavators, grab buckets and wheeled/front-end or yard loader hooks can be fitted flexibly. As always with ADLER:with a high-quality primer and powder coating.
Download
Advantages
- Robust construction in ADLER quality
- Various mounting options for a wide range of carrier vehicles
- Six working widths from 120 to 270 cm, each with 11 sweeping bars – modularly expandable to 22 sweeping bars
- Easy sweeping and gathering of loose material and bulk goods
- Versatile use on building sites, depot grounds, traffic areas and in agriculture
- Extensive range of optional equipment to meet individual requirements
Accessories
- Two brush stiffnesses
- Pivoting parking stands
- Wedge-shaped side brush strips
- Fork tine entry limiter
- Impact protection roller
- Fold-down scraper blade
- Marker rods
Technical specifications
| ADLER-Push broom SB-Serie | 120 | 150 | 180 | 210 | 240 | 270 |
|---|---|---|---|---|---|---|
| Working width (straight) (cm) | 120 | 150 | 180 | 210 | 240 | 270 |
| Overall width (cm) | 124 | 154 | 184 | 214 | 244 | 274 |
| Height (cm) | 46 | 46 | 46 | 46 | 46 | 46 |
| Brush rows | 11 | 11 | 11 | 11 | 11 | 11 |
| Area capacity (m²/h) | 11.400 | 14.300 | 17.100 | 20.000 | 22.800 | 25.700 |
| Weight (kg) Weight without mounting system | 141 | 157 | 173 | 189 | 212 | 246 |
SB-series
Get more information
Are you interested in the SB-series? Please fill in the form and let us or one of our sales partners provide you with more information!
Related products
- K 450 sweeper

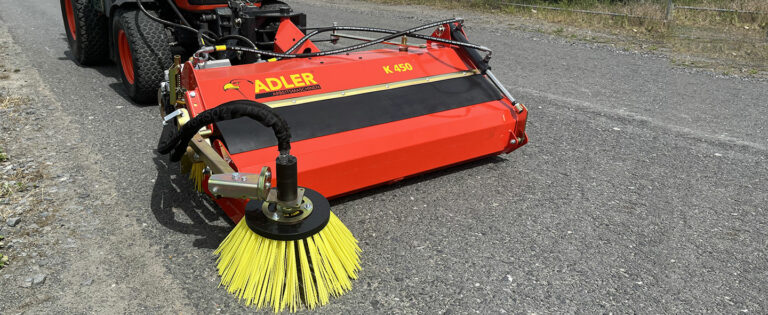

K 450 sweeper
